Polyester film 500g/m2 PPS dust extraction filter bags

Ask Lasest Price
Brand Name :	XINYUAN
Certification :	ISO9001 quality management system certification
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	100,000 pieces/month
Delivery Time :	3 days

Add to Cart

Product Details
Company Profile

Polyester film 500g/m2 PPS dust extraction filter bags

Well Sealed Dust Collecting Filter Bag

Product Description:

According to different working conditions, filter bags with different characteristics can be selected to achieve satisfactory filtration requirements. Our company's dust collection bag integrates design, selection, and production. The fabric and design of the dust collection bag pursue high-efficiency filtration, easy dust stripping and durable effects.

Product parameter:

Material	Polyester	Polyester film	Polyester anti-static	Polyester is water and oil repellent
Weight g/m²	500-550	500-550	500-550	500-550
Operating temperature °C	Continuous 130, instantaneous 150	Continuous 130, instantaneous 150	Continuous 130, instantaneous 150	Continuous 130, instantaneous 150
Performance	Easy cleaning	Microporous filtration reduces emission concentration	Anti-static, easy to clean dust	Water repellent, oil proof, easy to clean dust
Applicable industry	Steel plants, cement plants, coal mines, etc.	Steel plants, cement plants, chemical plants, power plants, etc.	Flour mills, chemical plants, coal mines, cement plants, etc.	Cement plants, chemical plants, flour mills, woodworking furniture factories, etc.

PPS filter material technical parameters
Ingredients	Polyphenylene sulfide (PPS) fiber/PPS filament base cloth			PPS fiber/glass fiber base cloth
Weight (g/m²)	450	500	550	＞800
Thickness (mm)	1.6	1.8	2.0	2.0
Air permeability (m³/m²/min)	18	15	12	8～15
Breaking strength (N/5×20cm)	Warp direction＞1150 Weft ＞1200	Warp direction＞1200 Weft direction＞1300	Warp direction＞1200 Weft direction＞1400	Warp>2000 Weft ＞4000
Elongation at break (%)	Warp direction＜30 Latitude <30	Warp direction＜30 Latitude <30	Warp direction＜30 Latitude <30	Warp <10 Latitude <10
Bursting strength (Mpa/min)	2.70	2.60	2.45	3.10
Working temperature ℃	Continuous ≤190, instantaneous 232
Acid and alkali resistance	excellent
Abrasion resistance	excellent
Hydrolysis	excellent
Post-processing method	High temperature hot pressing and singeing, water repellent, oil repellent treatment, layer			Singeing, calendering, water and oil repellent treatment, coating

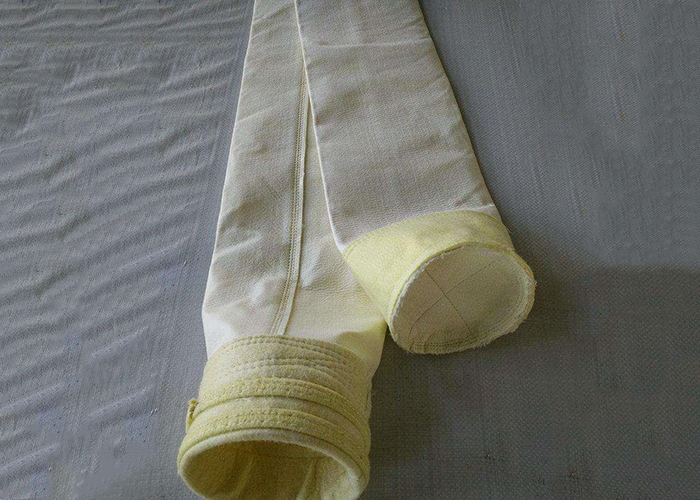

Pictures:

Features:

bag filter cost bag filter housing bag polyester filter bag
1.Supply to USA,Europe,and Austrilia .
2.Matrial:100% polyester fiber.
3.Professional polyester filter bag manufacture.
4.Personal technical worker for the cement polyester filter bag .

FAQ:

1.Can I get you products with our logo and design?
Yes, you can. Most of our products can be customized according to your requirements.

2.How can we get the quotation of filter cartridges ?
Please let us know the specifications, such as the materials, length, macron, apply in which industry etc.

3.Do you Accept OEM service?
YES!

4. Would it be possible for us to visit you factory?
Sure we are very welcome you at any time!

5.What's your delivery terms?
(1)FOB (2)CFR (3)CIF
