High Temperature Resistance, Corrosion Resistance, High Quality
Dust Filter Bag
Product Description:
The filter bags are made of various materials, mainly made of
polyester, polypropylene, acrylic, PPS, flumesi, PTFE film, glass
fiber and other materials. The materials have their own
characteristics. Some have good air permeability, smooth surface,
good dimensional stability, and easy to peel off dust; some can
withstand high temperature, corrosion, and wear resistance; some
are oil-repellent, waterproof, and anti-static.
Product parameter:
| Material | Polyester | Polyester film | Polyester anti-static | Polyester is water and oil repellent |
| Weight g/m² | 500-550 | 500-550 | 500-550 | 500-550 |
| Operating temperature °C | Continuous 130, instantaneous 150 | Continuous 130, instantaneous 150 | Continuous 130, instantaneous 150 | Continuous 130, instantaneous 150 |
| Performance | Easy cleaning | Microporous filtration reduces emission concentration | Anti-static, easy to clean dust | Water repellent, oil proof, easy to clean dust |
| Applicable industry | Steel plants, cement plants, coal mines, etc. | Steel plants, cement plants, chemical plants, power plants, etc. | Flour mills, chemical plants, coal mines, cement plants, etc. | Cement plants, chemical plants, flour mills, woodworking furniture
factories, etc.
|
| PPS filter material technical parameters |
| Ingredients | Polyphenylene sulfide (PPS) fiber/PPS filament base cloth | PPS fiber/glass fiber base cloth |
| Weight (g/m²) | 450 | 500 | 550 | ＞800 |
| Thickness (mm) | 1.6 | 1.8 | 2.0 | 2.0 |
| Air permeability (m³/m²/min) | 18 | 15 | 12 | 8～15 |
| Breaking strength (N/5×20cm) | Warp direction＞1150
Weft ＞1200 | Warp direction＞1200
Weft direction＞1300 | Warp direction＞1200
Weft direction＞1400 | Warp>2000
Weft ＞4000 |
| Elongation at break (%) | Warp direction＜30
Latitude <30 | Warp direction＜30
Latitude <30 | Warp direction＜30
Latitude <30 | Warp <10
Latitude <10 |
| Bursting strength (Mpa/min) | 2.70 | 2.60 | 2.45 | 3.10 |
| Working temperature ℃ | Continuous ≤190, instantaneous 232 |
| Acid and alkali resistance | excellent |
| Abrasion resistance | excellent |
| Hydrolysis | excellent |
| Post-processing method | High temperature hot pressing and singeing, water repellent, oil
repellent treatment, layer | Singeing, calendering, water and oil repellent treatment, coating |

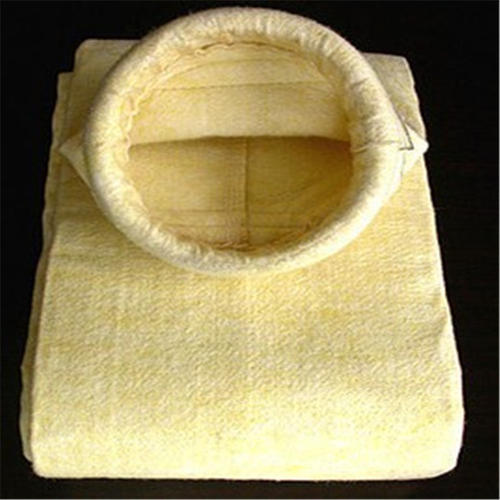

Pictures:
Features:
Filter bag bag body vertical stitches must be strong, straight, and
shall not be less than three line. The bag top and bottom according
to different requirements with single or double needle stitching.
Filter bag suture needle closely related to the filter bag
material, not only to ensure the stitching rigor and suture
strength not leak dust, but also shall not damage the strength of
the filter material itself.
FAQ:
1.Can I get you products with our logo and design?
Yes, you can. Most of our products can be customized according to
your requirements.
2.How can we get the quotation of filter cartridges ?
Please let us know the specifications, such as the materials,
length, macron, apply in which industry etc.
3.Do you Accept OEM service?
YES!
4. Would it be possible for us to visit you factory?
Sure we are very welcome you at any time!
5.What's your delivery terms?
(1)FOB (2)CFR (3)CIF
