Small Resistance; High Pollution Carrying Capacity; Hydraulic Oil
Filter Element
Product Description:
In the oil circuit of the hydraulic system, it is used to remove
the worn-out metal powder and other mechanical impurities in the
hydraulic system to keep the oil circuit clean, which can extend
the life of the hydraulic system; the low pressure series filter
element is also equipped with a bypass valve. When the filter
element is not replaced in time, the bypass valve can automatically
open to ensure the normal operation of the system.
Product parameter:
| Medium: | general hydraulic oil, phosphate grease hydraulic oil, emulsion,
water-hexanediol |
| Material quality: | glass fiber filter paper-BN stainless steel woven mesh-W wood pulp
filter paper-P stainless steel sintered mesh-V |
| Filtering precision: | 1μ ~ 100μ |
| Working pressure: | 21bar-210bar Working medium: general hydraulic oil, phosphate fat
hydraulic oil, emulsion, water-glycol |
| Working temperature: | -30℃～+110℃ |
| Sealing material: | fluorine rubber ring, nitrile rubber |

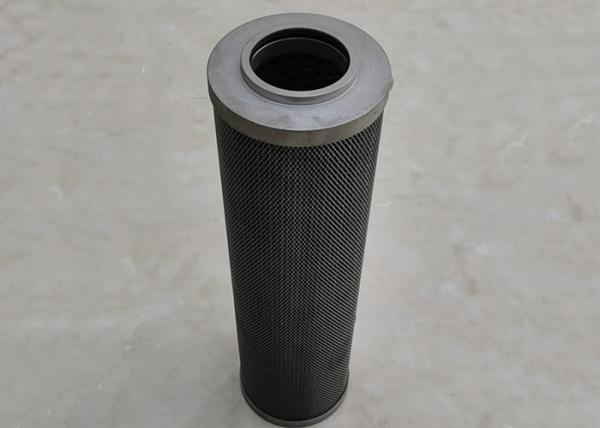

Pictures:
Feature:
The product has the characteristics of good air permeability, low
resistance, large filtering area, large dirt holding capacity, high
temperature resistance and good corrosion resistance.
Use:
1. Metallurgy: used for the filtration of the hydraulic system of
rolling mills and continuous casting machines and the filtration of
various lubricating equipment.
2. Petrochemical: Separation and recovery of products and
intermediate products in the process of oil refining and chemical
production, and particle removal and filtration of oilfield
injection water and natural gas.
FAQ:
Q: what's the material of your products?
1, National filter material:air paper /oil paper/fiber
glass/stainless steel mesh/Stainless steel sintered,
2, Imported filter material: Fiber glass imported from HV company
of USA.Oil paper imported from South Korea and ect.
3,End caps material: Carbon steel & stainless steel & Aluminum &
Machined&Plastic.
Q: Do you have warranty?
A: Our warranty is 1 year.It means under the correct installation
and normal using condition,if our goods meet any quality problem,we
will re-produce for you again for free.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free but do not pay the cost
of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 50% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shippment.
