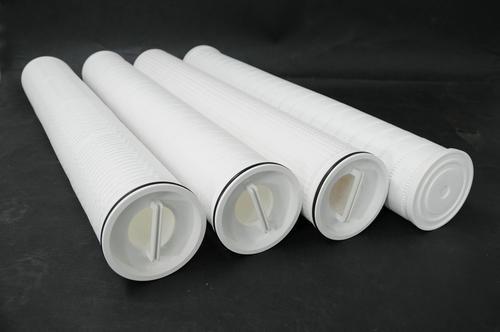

Pleated Polypropylene PP Sediment Water Filter Cartridge With 5
Micron 0.3 1 20 Micron Polypropylene Filters For Water Treatment
Product Description:
The deep filtration structure with gradual pore size outside and
dense inside can effectively remove suspended solids, particles,
rust and other impurities in the flowing liquid. The bridging
phenomenon of particles occurs in the pores of the filter element,
so that particles smaller than the pores can also be intercepted,
and the effective filtration accuracy is above 99%.
Product parameter:
| Series name | Outer diameter | inside diameter | Length | Filter material | Skeleton | Precision | Sealing material | Operating temperature | Pressure drop (Mpa) |
PP melt blown filter element | Ø60 Ø63 | Ø28 Ø30 | 10″20″30″40″ | PP | PP | 1-100μm | | ≤80℃ | 0.2 |
| Microporous pleated filter element | Ø68 | Ø28 Ø30 | 10″20″30″40″ | PP, PP+ PTFE film, PP+PES film,
GF (glass fiber) | PP, stainless steel | 0.1-50μm | Silicone, oil-resistant nitrile, fluorine rubber, | ≤80℃ | 1.25 |
PALL high flow folding filter element | Ø160 | Ø89 | 20″30″40″60″ | PP+ film | PP | 1-150μm | ≤80℃ | 0.42 |
3M high flow filter element | Ø160 | Ø77 | 20″30″40″60″ | PP | PP | 1-100μm | ≤80℃ | 0.42 |
Parker high flow folding filter | Ø152 | Ø100 | 20″30″40″60″ | PP | PP | 1-100μm | ≤80℃ | 3.4 |
Minimum order quantity: 100 pcs. Supply capacity: 30,000 pcs/month.
Delivery time: 24 hours |
Features and Benefits:
OD With 6 Inch/152mm, Inside To Outside Flow Configuration-All
Contaminants Held Within The Single Open Ended Filter
Deep Pleated Configuration, And Excellent Filtration Efficiency,
Making Huge Surface Area And Long Service Life Reduced Maintenance
Costs.
Especially For High Flow Liquid Filtration: RO Pre-Filtration,
Seawater Desalination, Cooling Water, Chemical Raw Materials,
Beverage, Biopharmaceutical, Solvents And Filtration Of Water
Our main standard products include: High Flow Filter Cartridges,
Pleated Cartridge Filters, Membrane Filter Cartridges, Melt Blown
Filter Cartridges, String Wound Cartridges, Activated Carbon
Cartridge Filters, Liquid Filter Bags & Filter Housings etc..
FAQ:
1.-Are you a trading company or manufacturer?
-Manufacturer with factory
2. What kind of product do you produce?
- Covers purifier filters, automotive filters, industrial filters,
air filter materials.
3.-How many years did you do filter?
-We have more than 10 years making experience
4.-Is Customized filter available?
-Yes,please offer your required specifications and drawing
