Stainless Steel Woven Mesh, Uniform Aperture Hydraulic Oil Filter
Element
Product Description:
In the oil circuit of the hydraulic system, it is used to remove
the worn metal powder and other mechanical impurities in the
hydraulic system to keep the oil circuit clean, which can extend
the life of the hydraulic system; the low-pressure series filter
element is also equipped with a bypass valve. When the filter
element is not replaced in time, the bypass valve can automatically
open to ensure the normal operation of the system.
Product parameter:
| Medium: | general hydraulic oil, phosphate grease hydraulic oil, emulsion,
water-hexanediol |
| Material quality: | glass fiber filter paper-BN stainless steel woven mesh-W wood pulp
filter paper-P stainless steel sintered mesh-V |
| Filtering precision: | 1μ ~ 100μ |
| Working pressure: | 21bar-210bar Working medium: general hydraulic oil, phosphate fat
hydraulic oil, emulsion, water-glycol |
| Working temperature: | -30℃～+110℃ |
| Sealing material: | fluorine rubber ring, nitrile rubber |

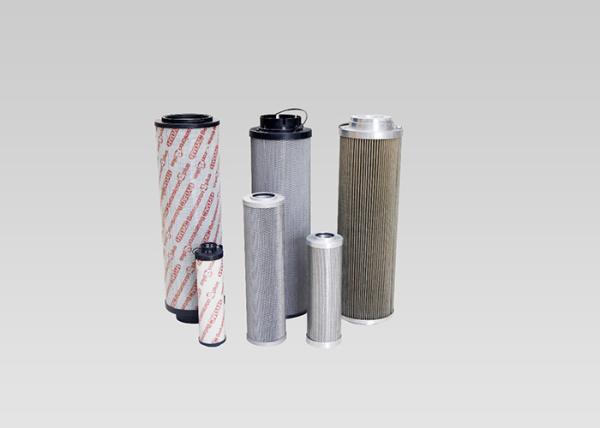

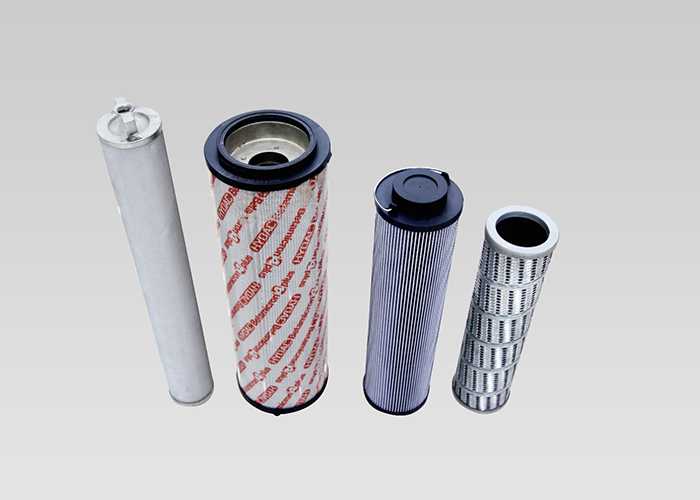

Pictures:
Features:
The main filter materials are: glass fiber filter paper, chemical
fiber filter paper, wood pulp filter paper, stainless steel woven
mesh, sintered mesh, etc. The main materials of the end cover and
support mesh are: stainless steel, carbon steel, etc.
Advantage:
The product has the characteristics of good air permeability, low
resistance, large filtering area, large dirt holding capacity, high
temperature resistance and good corrosion resistance.
FAQ:
1.Are you a trading company or manufacturer?
We are professional manufacturer with factory in China.
2.What kinds of filter do you produce?
It covers widely for air filter,oil filter,fuel filter for trucks,
construction machinery, power plant equipment,compressor-turbine
unit etc.
3.Is Customized filter available?
Yes,please offer your required specifications and drawing
4.Can I get you products with our logo and design?
Yes, you can. Most of our products can be customized according to
your requirements.
5.How can we get the quotation of filter cartridges ?
Please let us know the specifications, such as the materials,
length, macron, apply in which industry etc.
